TRANSITION Sentinel Carbon XT
New Transition Sentinel Carbon XT with fully redesigned frame and features. This bike says yes to every trail, every ride, and begs for more. With updated industrial design, features, and geometry, this is the The “one bike” for every rider.
Sentinel`s leverage curve supports the bike higher in its travel, leaving plenty of room for big hits while keeping it light on its feet to remain nimble, and quick everywhere else. This gives it the lively, sporty attitude felt in the Spur and Smuggler – without sacrificing its capabilities in rougher terrain.

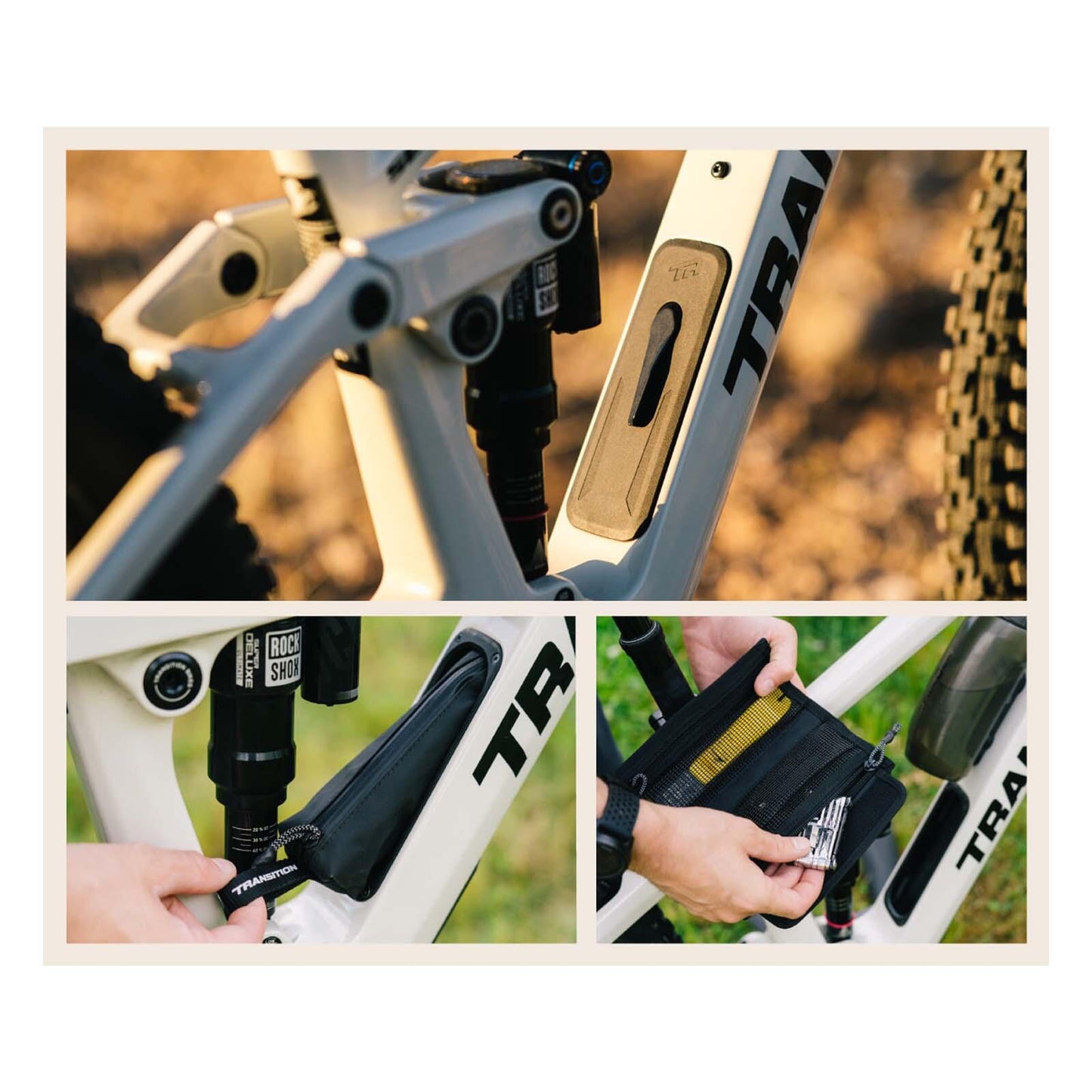

Carbon frame also has internal frame storage in the downtube. The BOOM Box (Burritos Or Other Munchies) position allows you to leave your bottle installed in your cage while easily getting into the B.O.O.M. Box. With an easy access lever and two supplied gear bags, riders can stow away snacks, tools, tube etc.

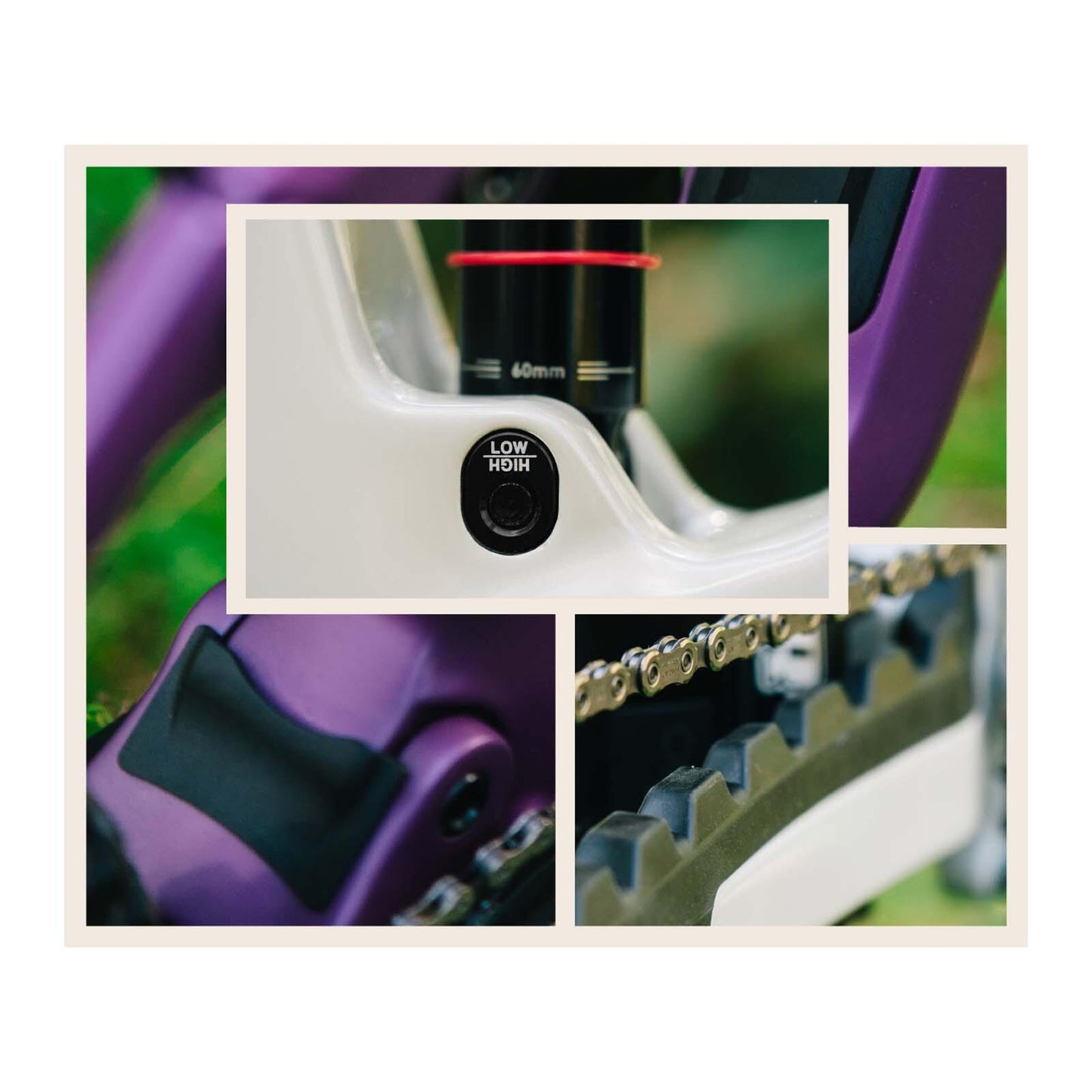

Geo-adjust flip chip on lower shock mount accommodates mixed wheels with new design allowing water, dirt and debris to easily wash away. Easy and simple cable routing with cable ports on the side of the headtube, with customizable routing for mechanical, wireless shifting or left/right rear brake routing. Pre-installed mud guard to protect the main pivot area, improving the bearing life.
HIGHLIGHTS:
- 29” Wheels S-XXL and mixed wheel compatible, dual 27.5 on XS
- 160mm travel front, 150mm travel rear (up to 160)
- BOOM BOX in frame storage with supplied frame storage bags on carbon models
- Size specific Chainstays (XS 436, SM/MD 442, LG/X-L/XXL 448)
- Main Pivot Mud Guard
- New Cable routing ports
- Refined kinematics create a lively, progressive platform
- Full Shimano XT Drivetrain and XT 4-piston brakes
- Rockshox Ultimate Lyrik and Super Deluxe
SPECIFICATIONS:
- Frame: Sentinel Carbon 150mm
- Wheel size: 29" (X-Small 27.5")
- Rear Shock: RockShox Super Deluxe Ultimate (205x60mm)
- Fork: RockShox Lyrik Ultimate (160mm)
- Headset: FSA No.57E
- Stem: ANVL Swage (40mm)
- Handlebar: ANVL Mandrel Alloy 35 XS/SM(800x20mm) MD/LG/XL(800x30mm) XXL(800x40mm)
- Grips: ODI Elite Flow
- Saddle: SDG Bel Air V3
- Seatpost: OneUp Dropper Post SM(150mm) MD(190mm) LG(210mm) XL/XXL(240mm)
- Brakes: Shimano XT M8120 4 Piston
- Rotors: Shimano RT86 (203mm)
- Shifter: Shimano XT M8100 iSpec EV
- Derailleur: Shimano XT M8100 SGS 12sp
- Cassette: Shimano XT M8100 (10-51t)
- Chain: Shimano XT M8100
- Crank: Shimano XT M8100 (30t/165mm)
- Rims: DT Swiss M 1900 Spline 30
- Spokes: DT Swiss Champion
- Hubs: DT Swiss 370 Ratchet LN
- Tire Front: Maxxis Assegai 3C EXO+ (2.5)
- Tire Rear: Maxxis Minion DHRII 3C EXO+ (2.4)
- Included: Tubeless Valves & Sealant
